MX 6012

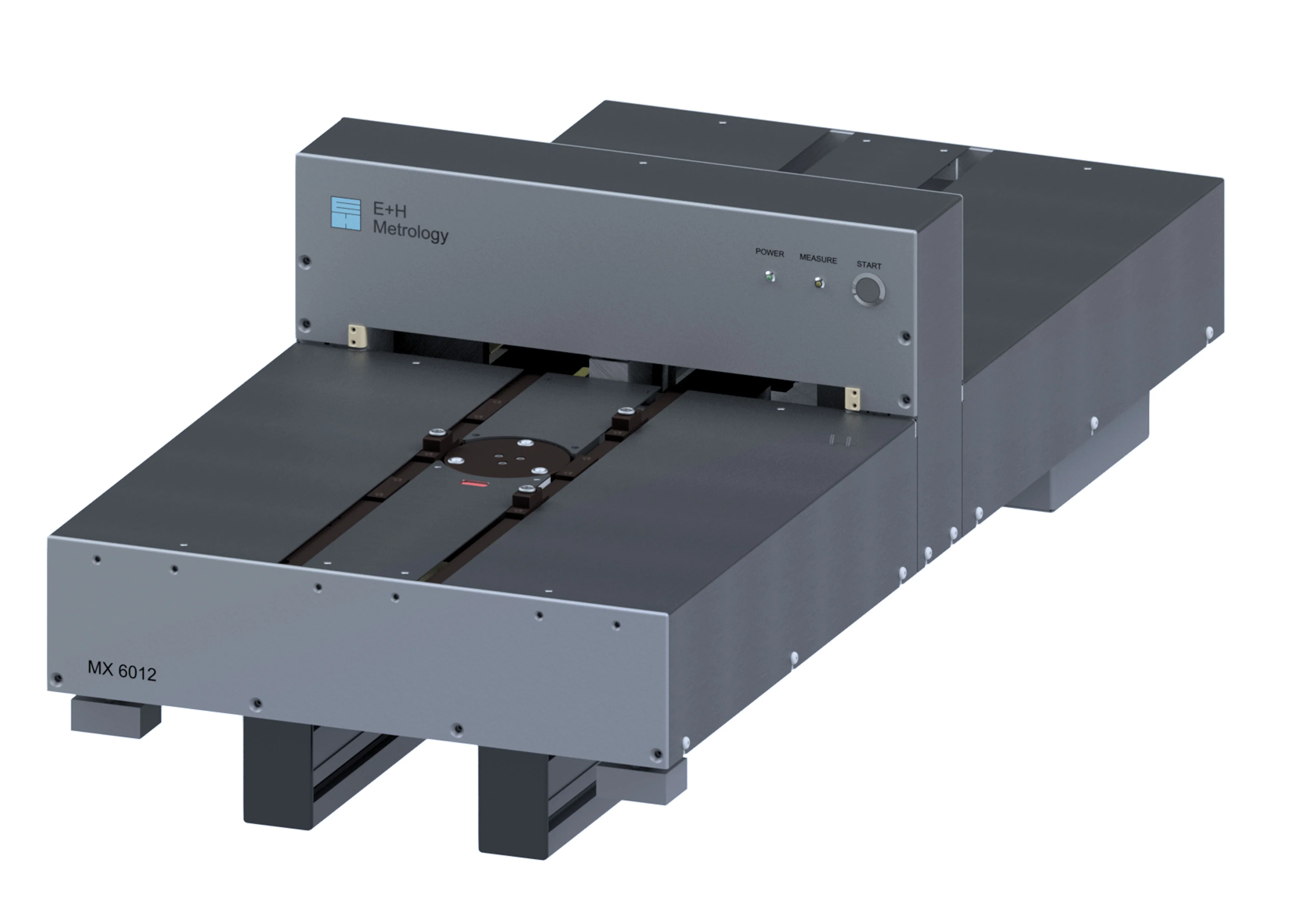

Combined thickness and resistivity gauge for 200 mm and 300 mm silicon wafers.

The MX6012 is designed to characterize silicon wafers. It combines contactless thickness, resistivity and P/N dotation sensors. Automatic move-in and turn of the wafer allows up to 18 scans of each wafer. To be connected to a PC. Comes with our powerful MX-NT operating software. Integration into automatic robotic sorter systems possible.


Measurement types

Thickness Flatness (TTV) Resistivity Sheet resistance P/N dotation

Features

Wafer Diameter 200, 300 mm
Software MX-NT
Thickness 600–900 μm
Max. warp 100 μm
Resistivity 0.001 – 200 Ohm·cm
Type check 0.020–200 Ohm·cm
