Capacitive sensor with 1,000 µm measuring range. Low cost, suitable up to 100°C

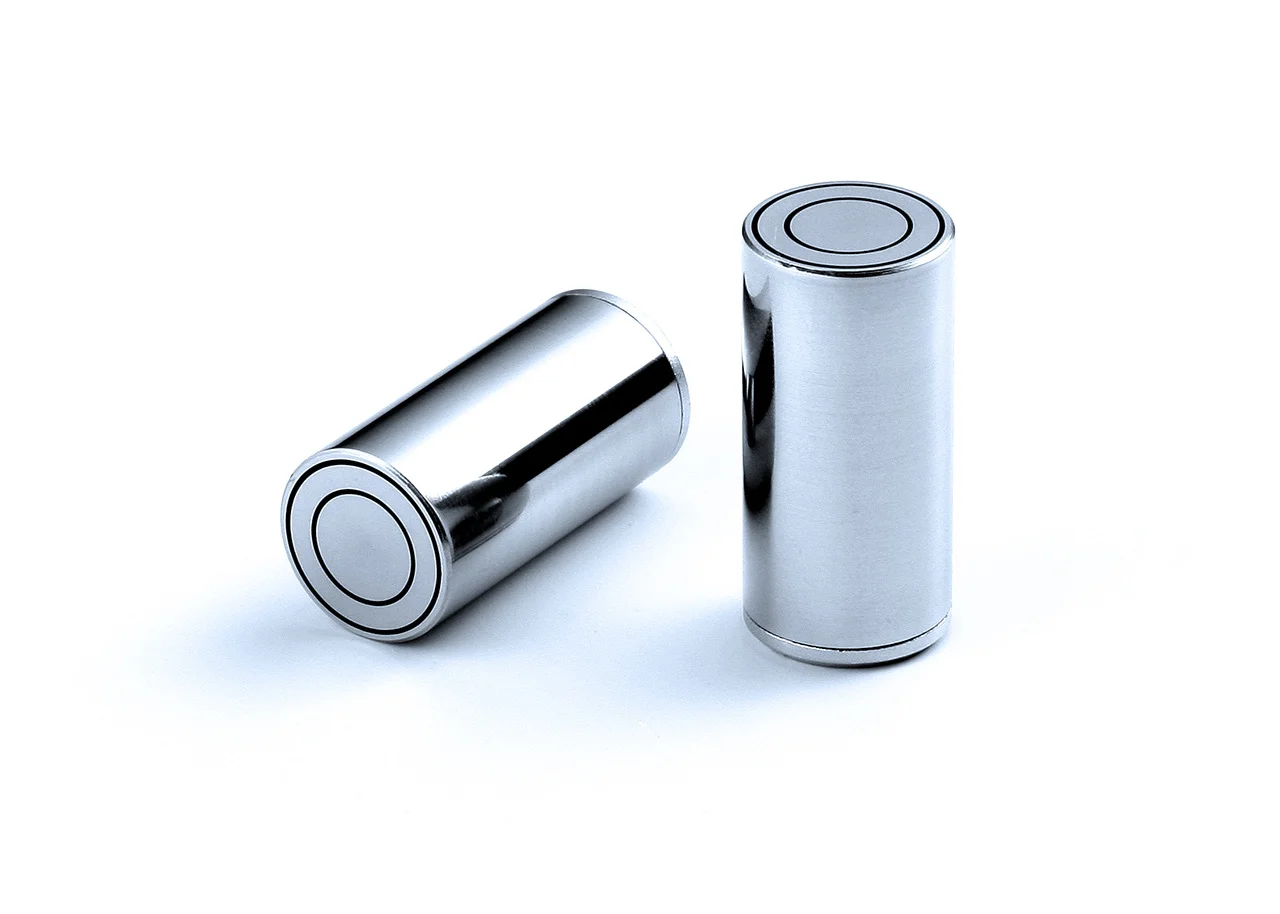

AW 210-13-3 is a contactless distance sensor to measure thickness, deformation and tolerances in a wide range of applications. Low cost system, operates with extreme accuracy, reliability and resolution, suitable up to 100°C. Very long lasting.
Can be combined with our cables and distance meters to form an unique world class sensor system.
| Measure range (µm) | 0–1000 |
| Tolerance of sensitivity (%) | ±0.5 |
| Active diameter (mm) | 5.5 |
| Max. temperature (°C) | 100 |
| Change of sensitivity | -3 x10-5/K |
| Elongation (µm/K) | 0.17 |
| Isolation | Epoxy |
| Housing DIN EN 10027-2 | 1.4305 |
| Weight | 7.1 g |
| Measuring cable | L13-11, L13-13, L33-11, L33-13 |
| Low temperature | Yes |
Connection cable for sensors with a measuring range ≥ 1000 µm. Length 1 m.
Connection cable for sensors with a measuring range ≥ 1000 µm. Angle plug. Length 1 m.
Connection cable for sensors from a measuring range ≥ 1000 µm. Length 3 m.
Connection cable for sensors from a measuring range ≥ 1000 µm. Angle plug. Length 3 m.
