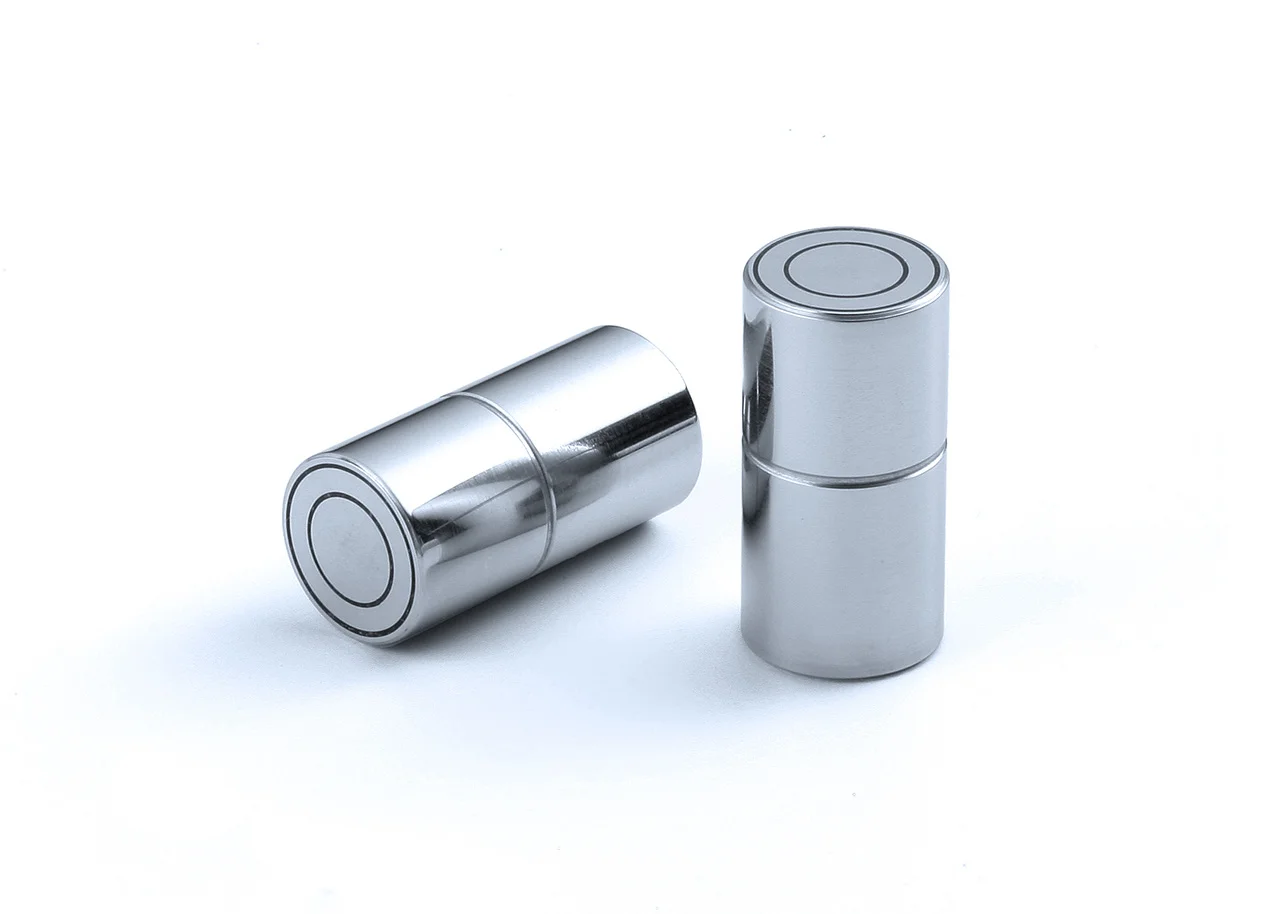

Capacitive sensor with 1,000 µm measuring range. For vacuum, high temp and lowest temp technique.
AW 210-13-2 is a contactless distance sensor to measure thickness, deformation and tolerances in a wide range of applications. It operates with extreme accuracy, reliability and resolution, even under adverse influences. even under adverse influences especially at temperatures around absolute zero. Very long lasting.
Can be combined with our cables and distance meters to form an unique world class sensor system.
| Measure range (µm) | 0–1000 |
| Tolerance of sensitivity (%) | ±0.5 |
| Active diameter (mm) | 5.5 |
| Max. temperature (°C) | 200 |
| Change of sensitivity | -1.1 x10-5/K |
| Elongation (µm/K) | 0.06 |
| Isolation | Epoxy |
| Housing DIN EN 10027-2 | 1.4104 |
| Weight | 7.1 g |
| Measuring cable | L13-11, L13-13, L33-11, L33-13 |
| Vacuum closeness | Yes |
| High temperature | Yes |
Connection cable for sensors with a measuring range ≥ 1000 µm. Length 1 m.
Connection cable for sensors with a measuring range ≥ 1000 µm. Angle plug. Length 1 m.
Connection cable for sensors from a measuring range ≥ 1000 µm. Length 3 m.
Connection cable for sensors from a measuring range ≥ 1000 µm. Angle plug. Length 3 m.
