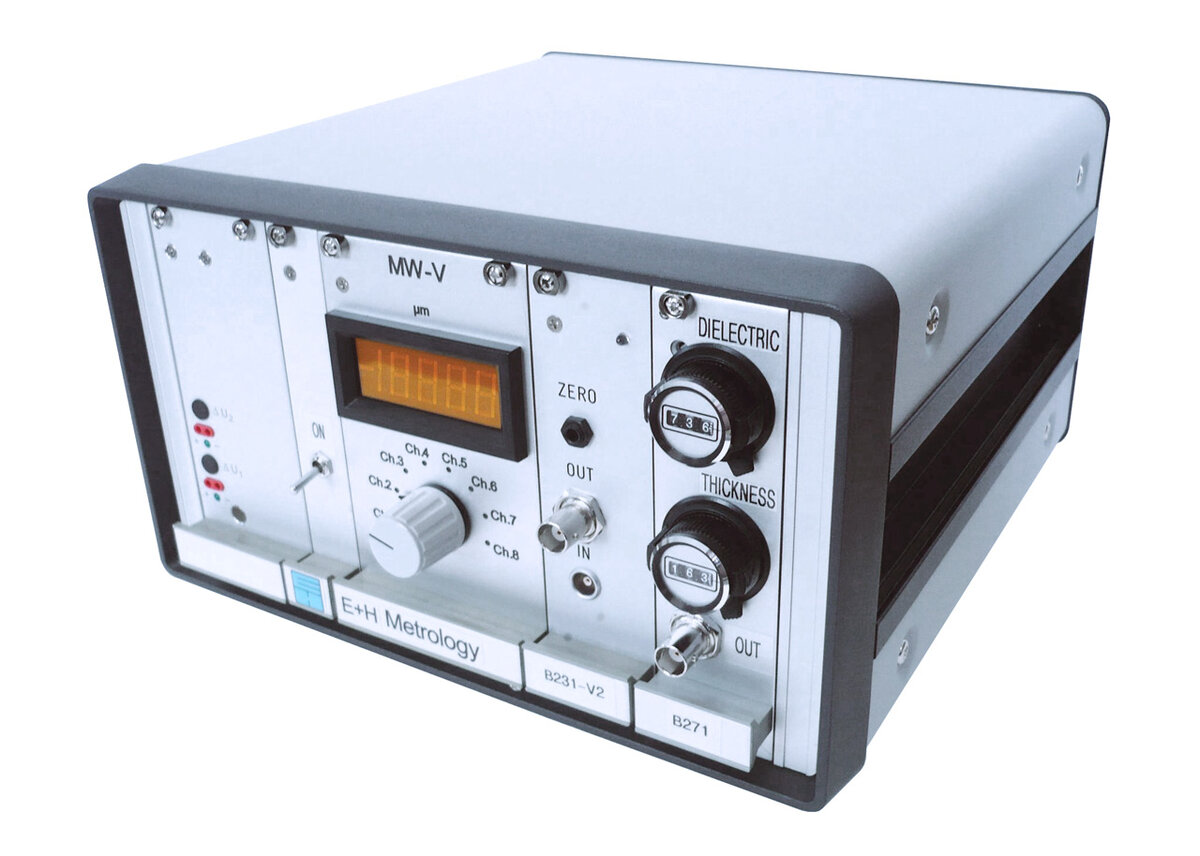

Stand-alone 1-channel distance meter for isolating materials like plastic foil or glass
The MW-V-F is an 1-channel device for cable lengths up to 3 meters. Measures the thickness of isolating materials such as plastic foil,
quartz, glass etc. The possible measuring range depends on the connected sensor, e.g. 100 µm with Sensor AW 210-22-1 and 500 µm with AW 210-13-1.
Additionally to the built-in display the measured values are fed to an output BNC socket for evaluation via oscilloscope or PC. For longer distances (up to 50m to the measuring site) the MZ1-M Pre-amplifier can be connected upstream.
| Measure range (µm) | 100 µm |
| Weight | 4.0 kg |
| Channels | 1 channel |
| Overall accurancy | +/- 0.2 µm |
| Measurement gap | 0.2 mm |
| Nominal value setting thickness | 0 to 99.9 µm |
| Dielectric constant | 0 to 99.9 |
| Digital display | +/- 100 µm |
| Output | 100 mV/µm, max. +/- 10V |
| Power supply | 115 V +/- 10% |
| Power consumption | 14 VA |
| Dimensions | 150 x 250 x 265 mm (HxWxD) |
